E-CITY

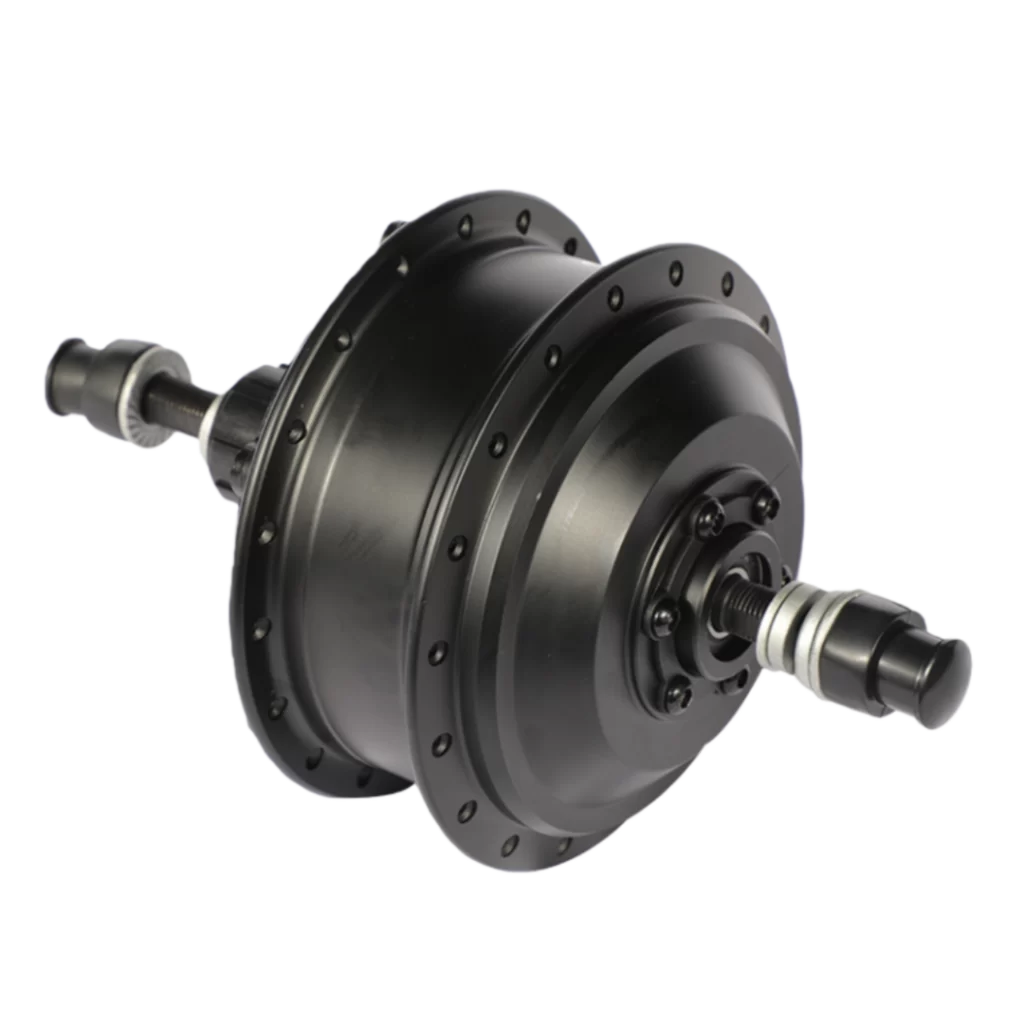

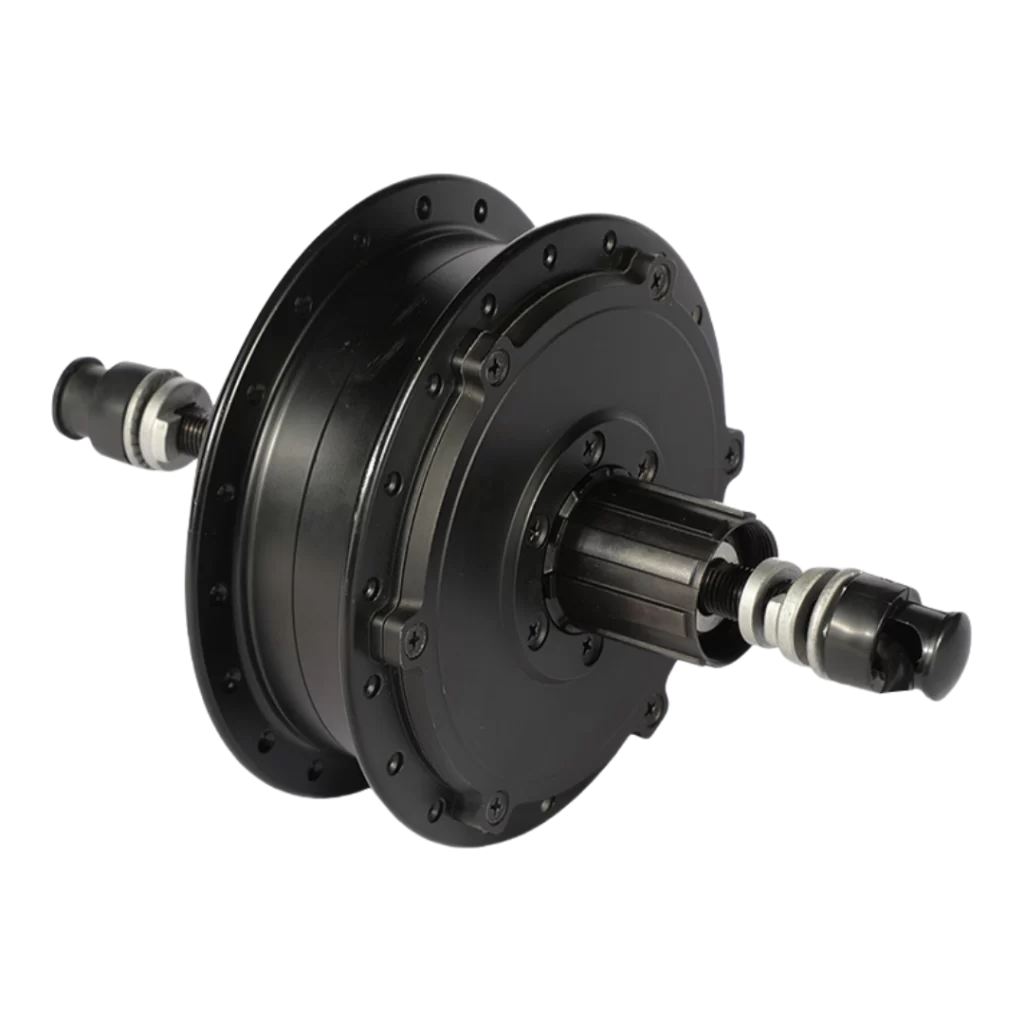

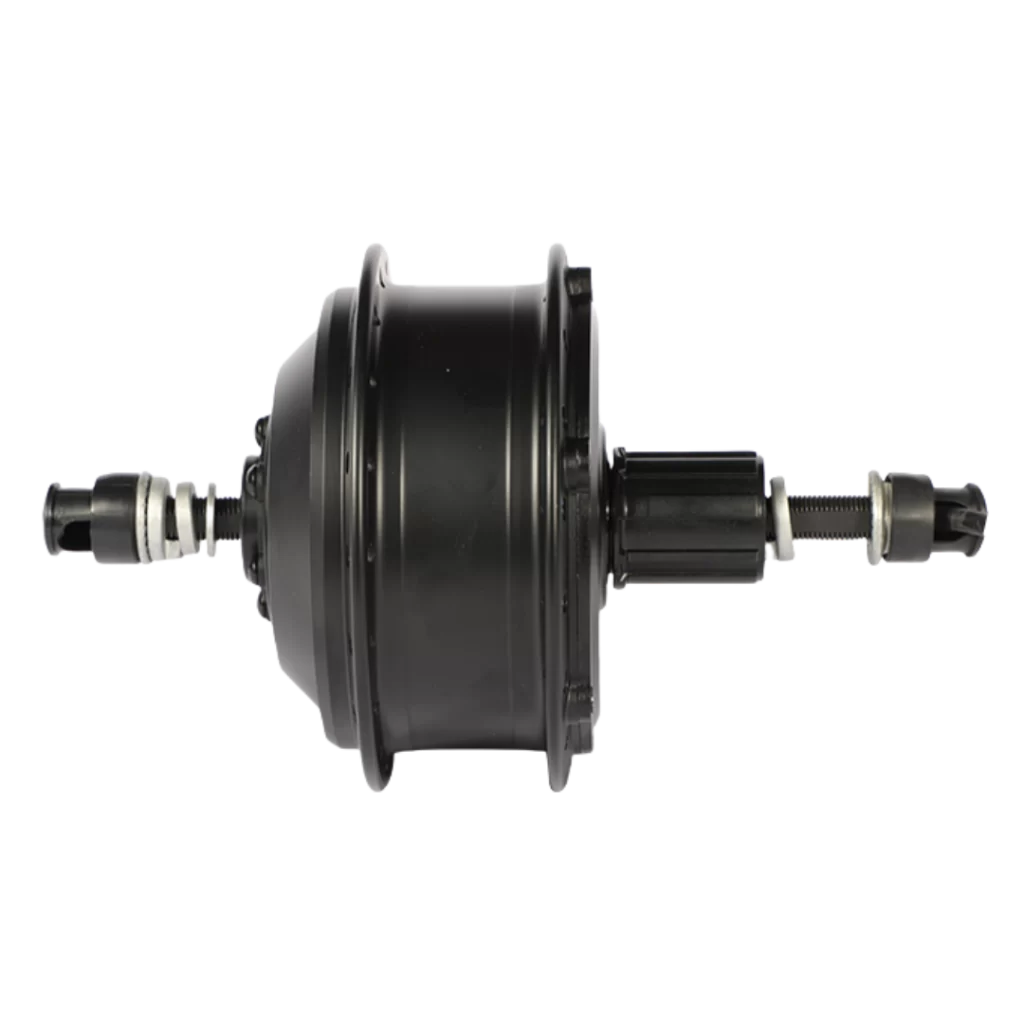

CZJB-90T2 e-bike hub motor
Cassette flywheel hub motors are compatible with modern transmission systems, and they are lighter and more efficient than older flywheel systems. This makes them suitable for high-performance e-bikes or e-bikes that require more precise control over gear selection. They provide enough power for urban commuting and moderate off-road use. Power delivery is smooth, which helps with climbing hills and provides extra assistance during acceleration.
Rated Power: 250w/350w
Max Torque: 42Nm
Reduction Ratio: 1:5.2
Specifications
Motor Drawing
Specifications
| Position | Rear |
| Construction | Gear |
| Rated Voltage(V) | 24/36/48 |
| Rated Power(W) | 250/350 |
| Weight(Kg) | 3 |
| Reduction Ratio | 1:5.2 |
| Max Torque(N.m) | 42 |
| Wheel Diameter(Inch) | 16-28 |
| Rated Speed(km/h) | 25 |
| Spoke Specification | 36H*12G/13G |
| Dropout(mm) | 138 |
| Brake Type | V/Disc brake |
| Operating Temperature(℃) | -20-45 |
| Efficiency(%) | ≥82 |
| Color | Black/silver |
| Cable Location | Shaft center right |
| Noise Grade(dB) | ≤55db |
| IP Grade | IP65 |
| Drive and Freewheel | 9S |
Motor Drawing
